iMachIII  M1 Pendant          Manual

X, Y and Z axis selection.

Step, Velocity and Continuous jogging through MPG

Slow jog rate, Feed rate and Spindle Speed change through MPG.

3 user macro control buttons.

Screen page selection.

Work with any Mach3 Screen.

more





iMachIII  M2 Pendant          Manual

X, Y, Z and A axis selection.

Step jogging and continuous jogging.

Instant Jog mode change.

Step size and jog rate indicators.

Feed rate and Spindle speed change.

Program and Spindle control.

2 user macro control buttons.

Work with any Mach3 Screen.

more

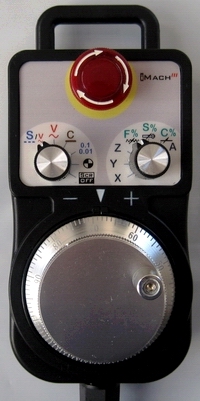

iMachIII  P1A, P1AE Pendant          Manual

X, Y, Z, A and B axis selection.

Step, Velocity and Continuous jogging.

Slow jog rate, Feed rate and Spindle Speed change through MPG.

E-Stop button with LED.

Work with any Mach3 Screen.

Relay control through E-Stop button (P1AE model with iMachIII  EE Box).

more



iMachIII  P1A-S, P1A-SE Pendant          Manual

LCD display with backlight.

Large E-Stop button.

X, Y, Z and A axis selection.

Step, Velocity and Continuous jogging.

Slow jog rate, Feed rate and Spindle Speed change through MPG.

Step size and Screen page selection.

Work with any Mach3 Screen.

Relay control through E-Stop button (P1A-SE model with iMachIII  EE Box).

more



iMachIII  P2-S, P2-SE Pendant          Manual

LCD display with backlight.

Large E-Stop button.

X, Y, Z and A axis selection.

Step, Velocity and Continuous jogging.

Slow jog rate, Feed rate and Spindle Speed change through MPG.

Spindle, program Start, Pause, Stop and Rewind controls.

Work with any Mach3 Screen.

Relay control through E-Stop button (P2-SE model with iMachIII  EE Box).

more

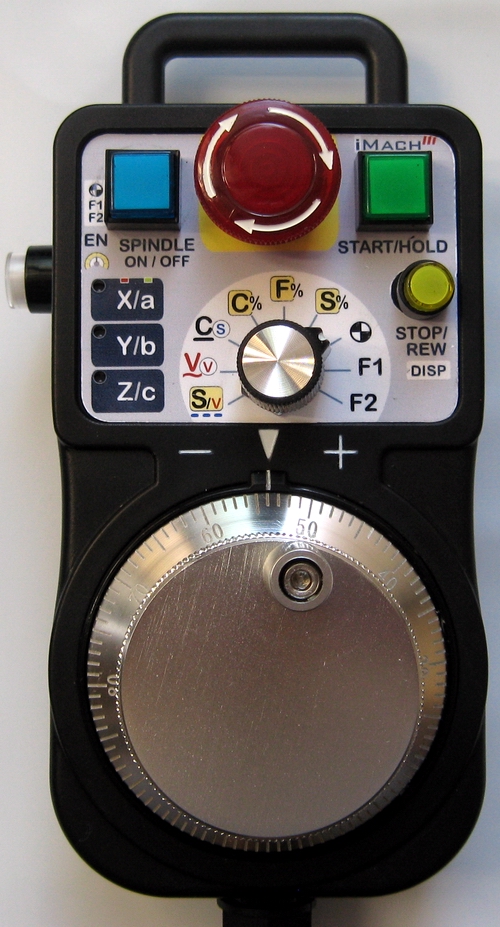

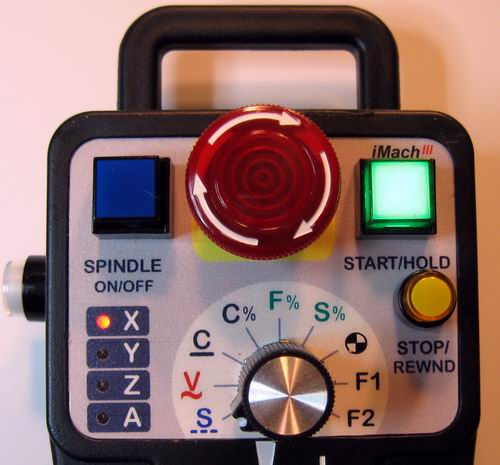

iMachIII  P3A, P3A-E Pendant          Manual

X, Y, Z, A, B, and C axis selection.

Separate control buttons for Spindle, program Start, Pause, Stop and Rewind.

Flashing LEDs embedded in Spindle control, Program control and E-Stop button.

MPG Step jogging, Velocity jogging and continuous jogging.

Slow jog rate, Feed rate and Spindle speed change through MPG.

Axis zeroing control.

Predefined number quick selection for Step Size, Feed rate, Spindle speed and Slow Jog Rate.

2 user macro control buttons.

Work with any Mach3 Screen.

Relay control through E-Stop button (P3E model with iMachIII  EE Box).

more



iMachIII  P4, P4-E Pendant          Manual

X, Y, Z, A, B, and C axis selection.

MPG Step jogging, Velocity jogging and continuous jogging.

Slow jog rate, Feed rate and Spindle speed change through MPG.

Button jogging.

Large E-stop button.

Predefined number quick selection for Step Size, Feed rate, Spindle speed and Slow Jog Rate.

5 user macro control buttons.

Work with any Mach3 Screen.

Relay control through E-Stop button (P4-E model with iMachIII  EE Box).

more



iMachIII  P4-S, P4-SE Pendant          Manual

LCD display with backlight.

Large E-Stop button.

X, Y, Z, A, B, and C axis selection.

MPG Step jogging, Velocity jogging and continuous jogging.

Slow jog rate, Feed rate and Spindle speed change through MPG.

Button jogging.

Predefined number quick selection for Step Size, Feed rate, Spindle speed and Slow Jog Rate.

3 user macro control buttons.

Work with any Mach3 Screen.

Relay control through E-Stop button (P4-SE model with iMachIII  EE Box).

more



iMachIII  P5A, P5A-E Pendant          Manual

Dust tight and water resistant buttons.

X, Y, Z, A, B, and C axis selection.

Separate control buttons for program Start, Pause, Stop and Rewind.

Single hand axis selection.

LED status indicator.

MPG Step jogging, Velocity jogging and continuous jogging.

Slow jog rate, Feed rate and Spindle speed change through MPG.

Axis Referencing and axis zeroing control.

Step jogging size selection.

2 user defined macro control buttons.

Relay control through E-Stop button (P5E model with iMachIII  EE Box).

more



iMachIII  EE Box

Works with P2E, P3E and P5E pendants to

   Provide an isolated Normally-Close switch from the E-Stop button on the Pendant,

   Use E-Stop button on the pendant to control the current loop of a relay,

   Connect the E-Stop button on the pendant to other E-Stop buttons in the system.



iMachIII  Spindle Tach          Manual

Works with Mach3 application and display RPM on Mach3 screen.

Embedded with a integrated Reflective Optical Sensor.

Measured signal is processed and sent back to Mach3 application through USB connection.



 Pendant Boot



Designed to withstand rough handling in harsh environment.

Provides additional protection to your valuable pendant.



Pendant Hanger



For P2, P2-E, P3, P3-E, P5, or P5-E pendant.

Simple and easy to install.



Pendant Magnetic Sticker



Self-adhesive magnetic plate. For P series pendant.

Remove the paper liner and stick the adhesive side to the pendant back. Attach the pendant to any metal surface.



iMachIII Screen            Manual

Mach3 Screen for Mill.

Most operation buttons, DROs, and LEDs on first "Main" screen.

Many add-on features.



iMachIII Keyboard Label

Converting your keyboard to a CNC control panel with key top stickers.

Covering most of iMach3 Screen buttons and Mach3 default hot key .
